技术特性
TECHNOLOGY CHARACTERISTICS
技术参数
TECHNOLOGY PARAMETERS

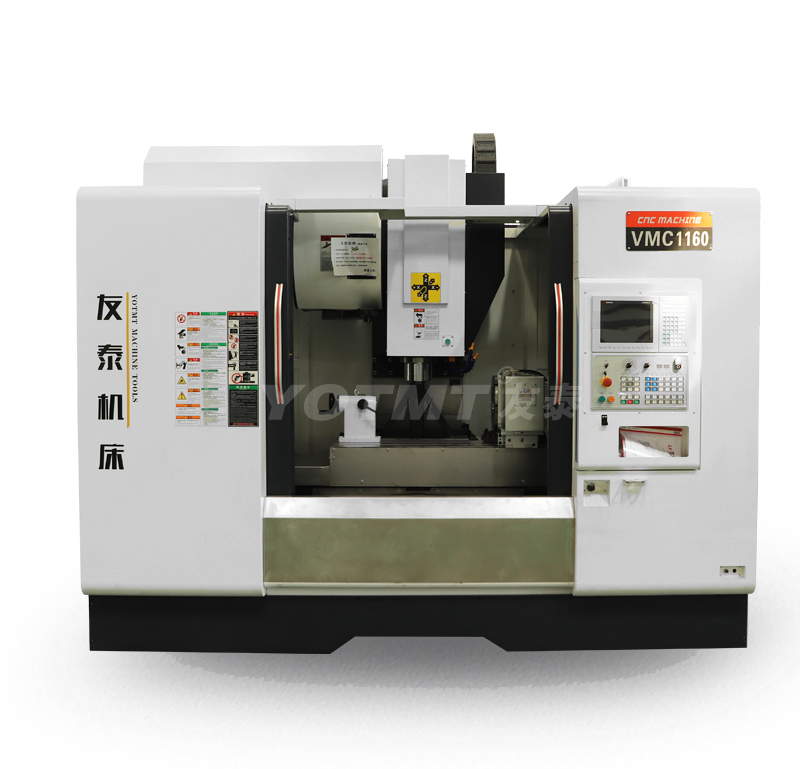

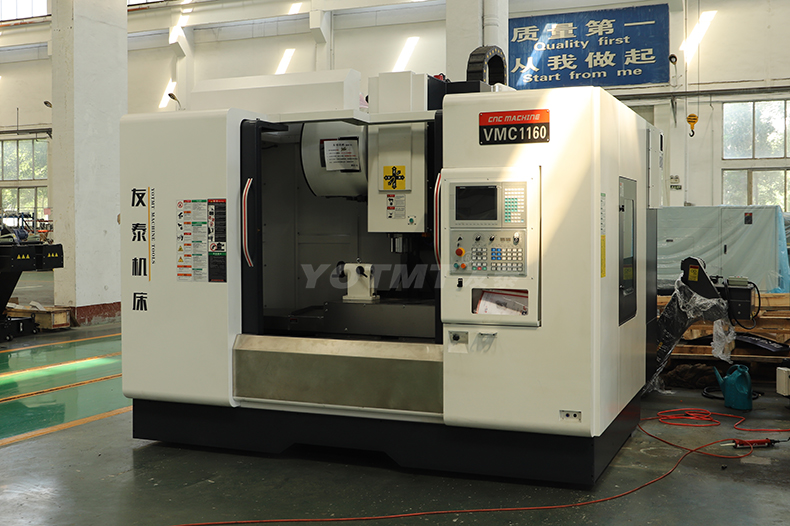

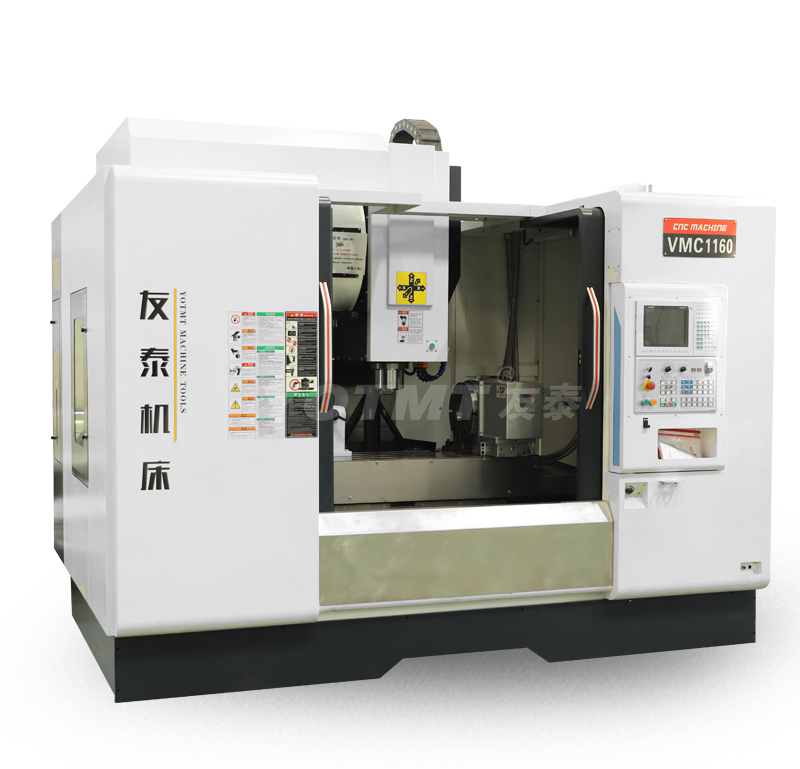

| 技术参数Specifications | Units | VMC1160 |
| 工作台尺寸Table size | mm | 1200x600 |
| X轴行程X axis travel | mm | 1100 |
| Y轴行程Y axis travel | mm | 600 |
| Z轴行程Z axis travel | mm | 600 |
| 工作台 大承重Max. worktable load | kg | 1000 |
| T型槽（数量-宽度-间隙） | 5-18x125 | |
| T slot(number-width-pitch) | ||
| 主轴转速Max. spindle speed | rpm | 8000(Optional:10000 ) |
| 主轴锥度Spindle taper | mm | BT40 |
| 主电机功率Main motor power | kw | 11/15 |
| X/Y/Z轴快移速度 | m/min | 24/24/20 |
| X/Y/Z rapid traverse speed | ||
| 切削进给速度Cutting feed speed | mm/min | 1-8000 |
| 导轨形式Guide rail type | Linear rail | |
| 主轴中心到立柱表面距离 | mm | 650 |
| Distance from spindle axis to column surface | ||
| 主轴端部到工作台表面距离 | mm | 140-740 |
| Distance between spindle nose and worktable surface | ||
| 定位精度Positioning accuracy | mm | ±0.0075 |
| 重复定位精度Repeat positioning accuracy | mm | ±0.005 |
| 刀库Tool magazine | Arm 24 | |
| 刀具 大直径Max. tool diameter | mm | φ78( Adjacent)/ φ120(Apart) |
| 刀具 大重量Max.tool weight | kg | 8 |
| 机床重量Machine weight | kg | 7000 |
| 外形尺寸Overall dimension | mm | 3400x2480x2960 |
